Wide 2.5V-to-15V Input Voltage Range

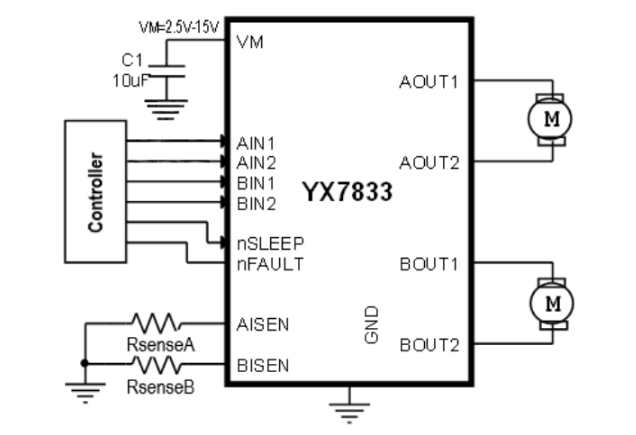

Two Internal Full-Bridge Drivers, drive one or two brush DC motors, one bipolar stepper motor, Solenoids and other inductive loads

Low MOSFET On Resistance ( HS:500mΩ; LS:500 mΩ)

Internal Charge Pump for the High-Side Driver

High output Current Capability 1A RMS, 1.6A Peak per H-Bridge, 2A RMS in Parallel Mode (at VVM=5V, +25℃）

PWM control interface

Supports 1.8V, 3.3V and 5V logic inputs

Integrated current regulation

Low-power sleep mode (<60nA at VVM=5V,TJ=25℃)

Integrated protections feature

VM undervoltage lockout

Auto-retry overcurrent protection

Thermal shutdown

Fault Indication Pin (nFAULT)

Thermally Enhanced Surface-Mount Packages

16-pin ETSSOP with PowerPAD, 5.0×6.4 mm

16-pin WQFN with PowerPAD, 3.0×3.0 mm

Robotics

Point-of-Sale Printers

Portable Printers

Toys

Video Security Cameras
